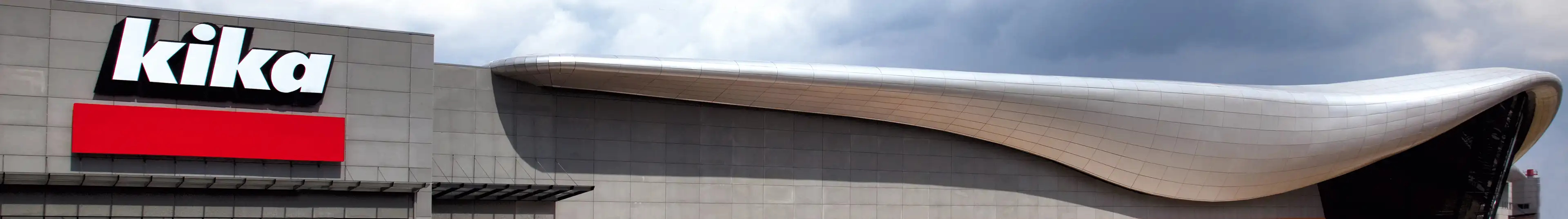

View of the Oz Shopping Centre building in Krasnodar, Russia

ALPOLIC™/fr

Flame-retardant

Easy to process, but flame-retardant: ALPOLIC™/fr

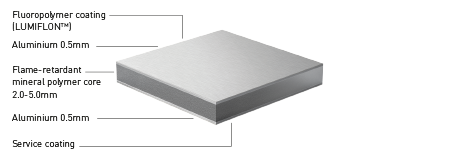

ALPOLIC^TM/fr is a composite panel consisting of two 0.5mm thick aluminium cover sheets with a flame-retardant mineral polymer core (2.0 to 5.0mm). It meets the requirements of fire class B - s1, d0 and is approved by the building authorities.

The composite panels convince through easy formability, easy processing with standard tools, variety of colours, weather resistance and low weight. The front of the ALPOLIC^TM aluminium composite panel is usually colour-coated with LUMIFLON™ or DURAGLOSS^® 5000. Both coatings guarantee high colour stability, provide reliable protection against the effects of weather, UV radiation, corrosion and acids and are efficiently resistant to chalking.

Technical Data

Dimensions	Standard	Unit	Value
Total Thickness	-	mm	3* / 4 / 6 (± 0.2 in 3 and 4) (± 0.3 in 6)
Cover sheet thickness	-	mm	0.5
Core thickness	-	mm	2 / 3 / 5
Width	-	mm	1,035 / 1,285 / 1,535 / 1,785 / 2,050 (± 2mm)
Length	-	mm	max. 7,300 (± 1 mm / m)
Bow tolerance	-	mm	max. 0.5% (5mm/m) of the length or width
Squareness tolerance	-	mm	max. 5
Technological Value
Weight	-	kg/m²	6 / 7.6 / 10.9
Tensile strength	DIN EN 1396	N/mm²	150
0.2% proof stress	DIN EN 1396	N/mm²	130
Elongation	DIN EN 1396	%	3
Flexural elasticity, E	ASTM D393	kN/mm²	49/39.8/29.1
Deflection temperature	ISO 75-2	°C	115/116/109
Thermal expansion	ASTM D696	x 10^-6/°C	24
Heat potential of the core	-	MJ /kg	< 15
Surfaces
Coil-Coating	-	-	LUMIFLON^TM Fluorpolymer coating (FEVE)	DURAGLOSS^® 5000 Polymer coating
Aluminium alloy	-	-	3105 H44 and 3005 H44
Gloss (measured at 60°)	EN 13523-2	%	15-80	High gloss, silk matt, matt and MattExtreme
Pencil hardness	EN 13523-4	-	H	>HB
Resistance to rapid deformation	EN 13523-4	-	Rear impact deepening at 7.5Nm/mm: No cracks
Resistance to immersion in water	EN 13523-9	-	After 500 hours: No influence
Chalking resistance	EN 13523-14	-	Chalking out after 1,000 Q-UV test hours (= 500 hours UV-B): ≤ 10%

Fire classification

International fire classifications

Country	Test Standard	Results & Classification
EU (applicable in Europe, Switzerland and Turkey)	EN 13823, EN ISO 11925-2, EN 13501-1	Class B - s1, d0
Germany	DIN 4102-1	DIN 4102-1
Switzerland	VKF	RF2
France	-	M1
Great Britain	BS 476 Part 6 & 7, BS 8414-1, BS 8414-2	BR 135
Poland	PN / B-02867	-
Czech Republic	CSN 73 0862, CSN 73 0863	Class C1
Hungary	MSZ 14800-6:2009	passed
Austria	OENORM B 3800-5	passed
Russia	GOST 30244-94 method II, SNIP 21-01-97*, TsNIISK Natural Fire Test	Class G1 „Hardly Inflammable Materials“
USA	NFPA 259-93 (British Thermal Unit)	passed
	ASTM D1781-76 (Climbing Drum Peel Test)	passed
	ASTM E-84 (Steiner Tunnel Test)	Class A/Class 1
	ASTM E-108 Modified	passed
	UBC 26-9 & NFPA 285 (ISMA Test)	passed
	ASTM E108 (Fire Test for Roof Covering)	Class A
	ASTM E119 (1hr and 2hrs Fire Rating)	passed
	UBC 26-3 (Interior Room Corner Test)	passed
	Combustion Toxicity Test New York State Uniform Fire Prevention and Building Code	passed
